Avoim D800 & D800-Dante
D800 & D800-Dante
A-Net Distributors
The D800 and D800-Dante A-Net Distributors provide the link between the Dante network, input module, or console card and the Personal Mixers, providing DC power and the digital A-Net audio data stream to your Aviom Personal Mixers, utilizing standard Cat-5 cables.
The A-Net and Dante versions of the D800 also integrate additional advanced options for delivering high-channel-count audio streams to your Personal Mixers, streamlining connections between A640 and A360 Personal Mixers and transmitters used for wireless in-ear monitors.
There are two variations of the D800 product design. The orignal versions of the D800 and D800-Dante used front panel switches (labeled I/II) to control bidirectional communication when used with Aviom Personal Mixers. D800 v.2 and D800-Dante v.2 elminate the need for the bidirectional switches by automatically setting up bidirectional communication with Aviom Personal Mixers as needed. The original and v.2 versions of the product can be freely interchanged in systems designs.
The D800 and D800-Dante can be used with A640*, A360, A320, and A-16II Personal Mixers in any combination.
Get more channels to your mixers
Used in conjunction with the SB4 System Bridge and Pro16 A-Net console cards (such as the Y1 A-Net Card for Yamaha®), the D800 and D800-Dante can combine up to four 16-channel A-Net streams for sending up to 64 channels directly from your digital console to your Aviom Personal Mixers. Mix channels can be individually selected for each A640 right from its user interface and for the A360 Personal Mixer by using A360 Channel Manager, allowing each musician to mix exactly the sources they need.

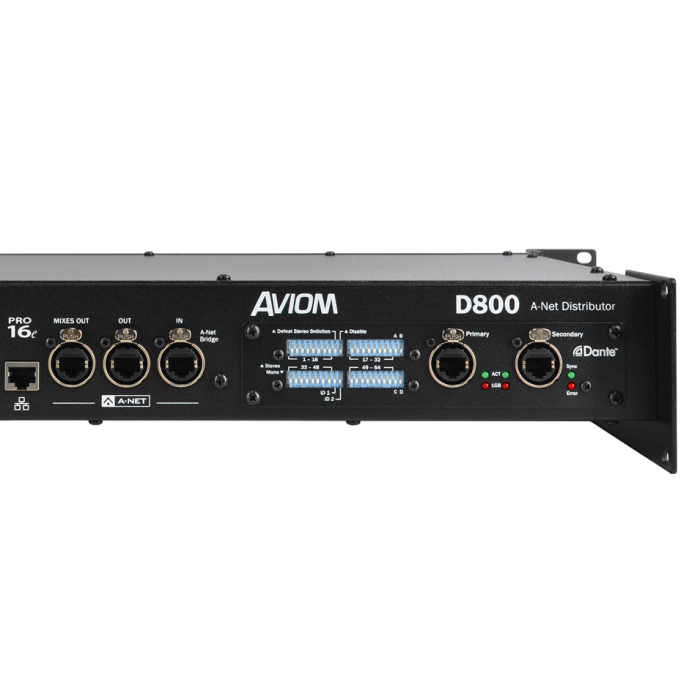

Mix channels can be individually selected for each A360 using the A360 Channel Manager software. Rear-panel DIP switches on the D800 are used to set the global stereo links for channels going to the Personal Mixers. Use the Dante Controller Mac/PC software application for channel routing.
| Dante Primary I/O | Locking RJ45 connector |
|---|---|
| Dante Secondary I/O | Locking RJ45 connector |
| Stereo Link | Four DIP Switch blocks: 1-16, 17-32, 33-48, and 49-64; used to set up to 32 channel pairs as stereo links |
| Stereo Link Defeat | Bypasses DIP switch stereo link settings |
| Disable DIP switch | Chooses Dante (down) or A-Net In (up) as the input source for the D800-Dante |
| ID1, ID2 DIP Switch | Reserved |
| A, B, C, D DIP switch | Reserved |
| LEDs (rear panel) | Error (red); Sync (green); 1GB Active (red); Network Activity (green) |
| Supported Dante Sample Rates | 44.1, 48kHz - 64 channels 88.2, 96kHz - 32 channels 176.4, 192kHz - 16 channels |
| Static IP support | Yes |
| AES67 Support | Yes |
Technical Specifications
| A-Net to/from Personal Mixers (front panel) | Eight locking RJ45 connectors, powered; Compatible with A-16II, A320, and A360 Personal Mixers; 2-position switch (I/II) accommodates A-16II and A320 (I) and the bidirectional A360 Personal Mixer (II) * The I/II switches are not required on D800 v.2 |
|---|---|
| A-Net In or A-Net Bridge In |
Accepts Pro16 or Pro16e A-Net; one locking RJ45 connector |
| A-Net Out (rear panel) | Pro16e A-Net; one locking RJ45 connector, unpowered Supports system expansion and the A-16II, A320, and A360 Personal Mixers |
| A-Net Mixes Out | Pro16e A-Net; One locking RJ45 connector, unpowered; Provides up to 16 channels (8 stereo pairs) of Network Mix Back™ data from up to eight A360 Personal Mixers |
| Ethernet | One RJ45 connector; for iOS A360 Display support |
| LEDs | Power On (red); Sync (green) |
| USB | Used for firmware updates |
| A-Net Cables | Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. Unshielded Cat-5e cable may be used on all rear panel connections |
| Output Voltage for Personal Mixers | 24VDC, 0.5 amp Transmitted over the Cat-5e cable |
| Power Supply | Internal, universal switching type, IEC connector |
| Input Voltage | 100-240VAC, 50-60Hz, 300W Fuse - 250VAC~ T4AL |
| Dimensions | 19" (482.6 mm) wide x 14.25" (362 mm) deep; 2U, 3.5" (88.9 mm) high |
| Weight | 12.0 lbs (5.44 kg) |
