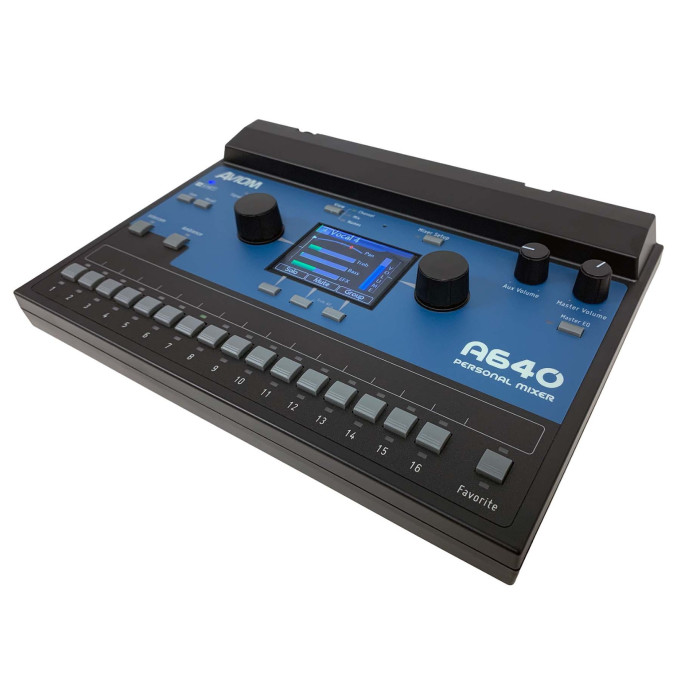

Aviom A640 Personal Mixer
Aviom's Personal Mixers are the worldwide industry-standard for personal mixing on stage and in the studio. The A640, Aviom’s flagship personal mixer, brings an unparalleled level of control, performance, and fidelity to personal mixing that exemplifies Aviom’s core brand sensibilities.
With more mix channels, powerful features, and an intuitive, streamlined user-interface, the A640 helps musicians hear better than ever before. It's compatible with all existing Aviom systems using Dante networking, digital console cards, or analog inputs, and can be used simultaneously with the A360, A320 and/or A-16II Personal Mixers.
- Intuitive user interface featuring high-res color multi-mix-view display
- Customizable channel selection from up to 64 network channels
- 36-channel mix engine for up to 18 mono or stereo sources
- Per-channel volume, treble, bass, reverb, and pan plus Master Bass/Treble with Enhance
- One-Touch Ambience™ using network audio or the internal mic
- Master 6-band parametric EQ
- Intercom for communicating with other A640 users
- Favorite Channel holds each musician's most important channel
- USB for easy archiving and loading custom mixer configurations
- 1/4" and 1/8" stereo mix out plus XLR mono Aux mix out
- Support for Network Mix Back™ (requires a D800)
- Audiogram EQ support for hearing loss compensation
Technical Specifications
| Audio Output | 1/4" TRS stereo, headphone or line level; 1/8" TRS stereo, headphone or line level; XLR balanced mono, line level |
|---|---|
| Stereo Mix Outputs, Headphone/Line | Tip: Audio Left; Ring: Audio Right; Sleeve: Ground |
| Mono Mix Output | Pin 2: Hot, Pin 3: Cold; Pin 1: Ground |
| A-Net | 1 A-Net In, locking RJ45 connector; Supports Power Over A-Net |
| D/A Conversion | 44.1/48kHz, 24-bit |
| Stereo Operation | Stereo Link, per mixer channel and A-Net channel pair Set at the input device; Variable pan per mono channel or pan/spread per stereo channel pair |
| USB Storage | Save/load mix configuration data and mixer presets; Firmware updates Requires USB compliant mass storage device, formatted for PC |
| Headphone Output | 1.0 watt at 100 ohms (Line/Headphone output) |
| Output Impedance | 32 ohms |
| Frequency Response | 2-22kHz +0.2dB/-3dB |
| THD+N | < 0.003% |
| Signal to Noise (unweighted) | -106dB (measured with zero data into all channels) |
| Latency | <0.680 msec (measured from analog input to analog output) |
| A-Net Cables | Use unshielded Cat-5e UTP (or better) cable; Maximum 400 ft (122 m) between devices; |
| Power Supply Input Voltage Plug Size |
Optional 24 VDC, 0.5 amp 2 mm |
| Dimensions | 10.76 in. (273.3mm) wide x 7.6 in. (193.04mm) deep; 2.212 in. (56.18mm) high |
| Weight | 2 lb (0.907 kg); packaged weight 3 lb. (1.36 kg) |
| Options | MT-1a Mic Stand Mount (uses 6-32 1/4-inch screws) EB-1 Extension Bracket PS-120/PS-240 Power Supply |
