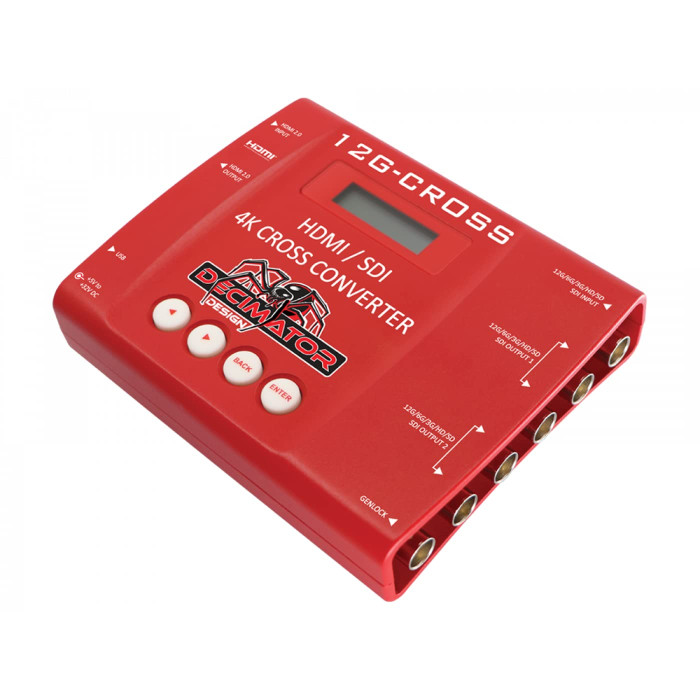

12G-CROSS 4K HDMI/SDI Cross Converter
Price:
$0.00
Only %1 left
SKU
DD-12G-CROSS
- Compact, low-power portable converter (4.2" x 5.1" x 1.2") housed in a durable aluminum enclosure with fanless operation for silent use in any environment.
- Simultaneous HDMI and SDI outputs can be sourced from either HDMI input, SDI input, or the integrated 4K scaling engine.
- Professional 12G/6G/3G/HD/SD test pattern generator featuring 57 selectable output formats and 58 test patterns, including Luma and Chroma Zone Plates.
- Supports 294 VESA formats via HDMI input.
- Advanced 4K scaling engine supports SDI or HDMI input, with horizontal/vertical image flipping and sync lock to SDI, HDMI, or Genlock input.
- Capable of scaling and/or frame rate conversion between 351 input formats and 57 output formats, including:
- 294 VESA formats via HDMI input
- (3840 or 4096) × 2160p50/59.94/60 via HDMI or 12G-SDI
- (3840 or 4096) × 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI
- (1920 or 2048) × 1080p50/59.94/60 via HDMI or 3G-SDI (Level A or B)
- 1920 × 1080i60/59.94/50 via HDMI or HD-SDI
- (1920 or 2048) × 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
- (1920 or 2048) × 1080psf30/29.97/25/24/23.98 via HD-SDI
- 1280 × 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
- 1280 × 720p24/23.98 via HD-SDI
- 720 × 480p59.94 or 720 × 576p50 via HDMI
- 720 × 480i59.94 (NTSC) or 720 × 576i50 (PAL) via HDMI or SD-SDI
- Supports an impressive 20,007 possible format conversions.
- Flexible audio routing allows rearrangement of audio pairs on both SDI and HDMI outputs.
- Includes 4 × (12G/6G/3G/HD/SD)-SDI outputs, enabling use as a 1-to-4 distribution amplifier.
- Features a built-in LCD screen with intuitive button controls for quick and easy configuration—no complex dip switches or external computer required.
- Additional features include:
- USB port for control and firmware updates
- Metal thread-locking DC power socket
- Power supply and USB cable included
